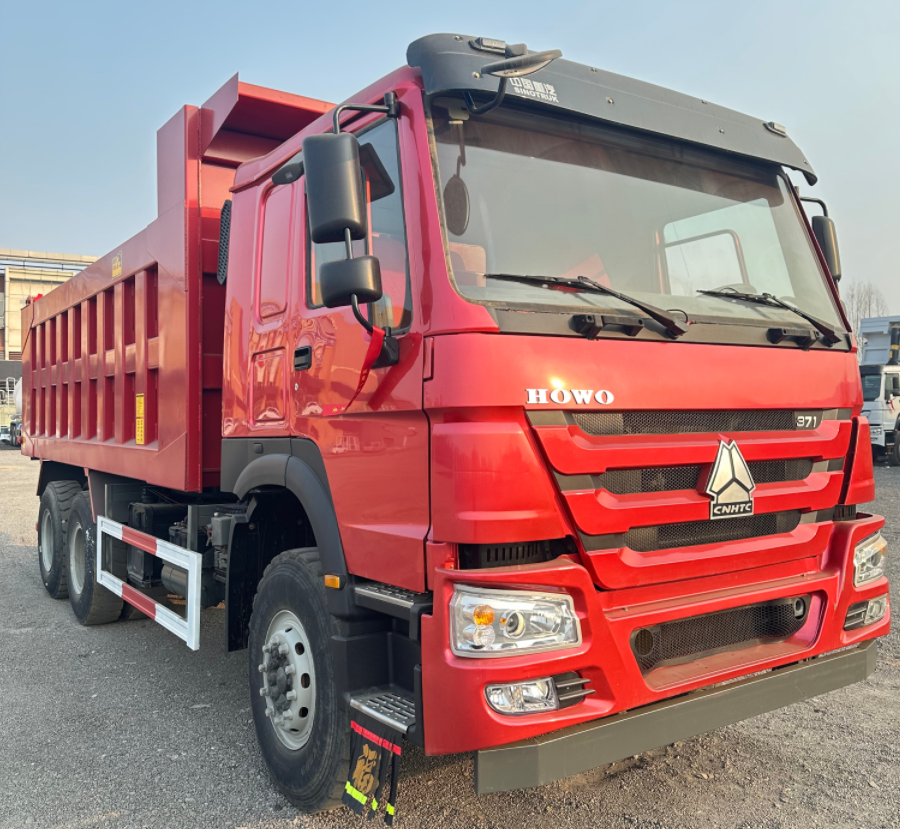

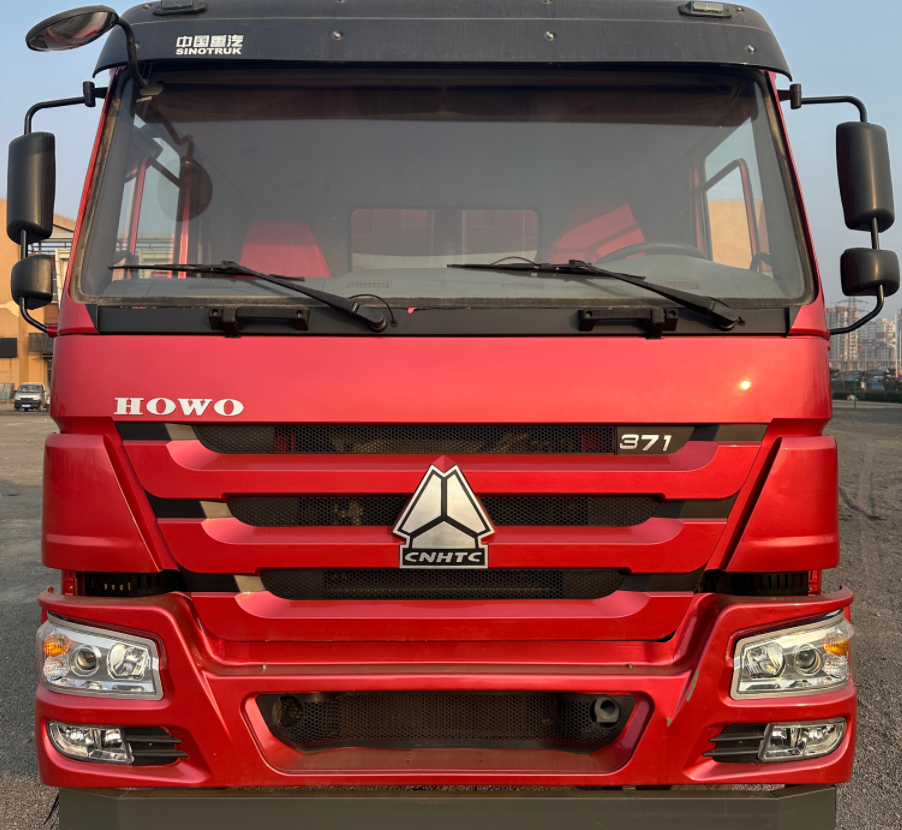

Product Core configuration
Power System:

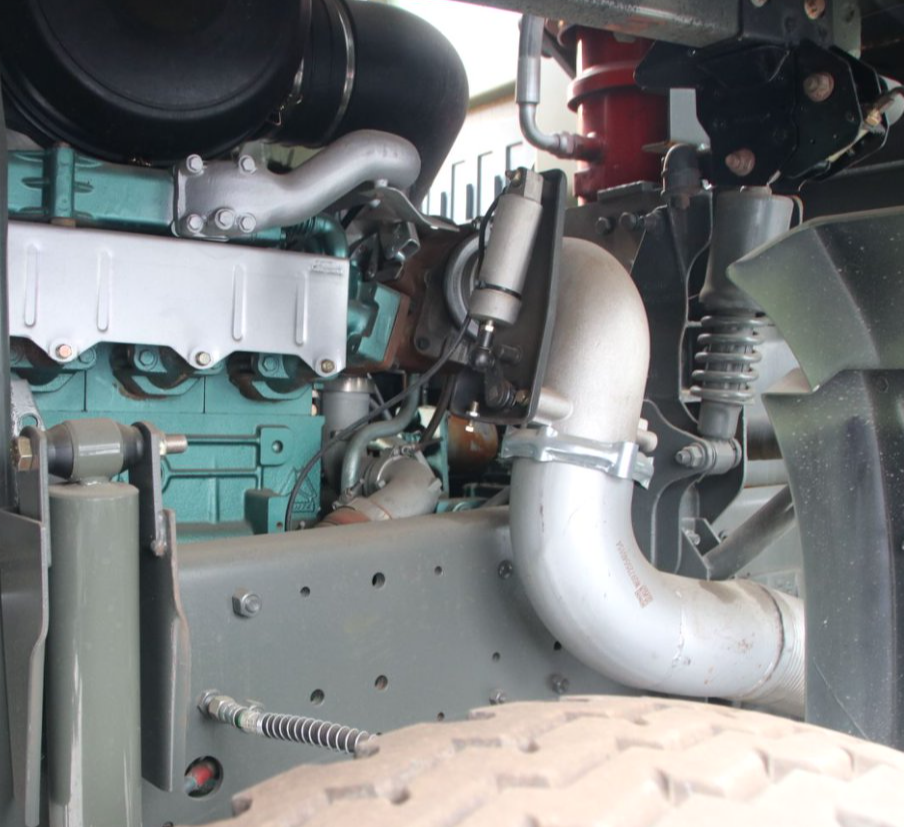

Engine: Equipped with Sinotruk WD615.96NE or WD615.47 large pump engine, with an output power of 371 horsepower and a maximum torque of 1900N·m, it meets the National II/National III emission standards and is suitable for low-sulfur diesel environments.
Transmission: Matching HW19710 or HW19712 manual transmission (10/12 gears), supporting engineering-specific power take-offs, suitable for heavy loads and complex working conditions.
Chassis and Load-bearing:
Frame: Adopts a double-layer frame (8+8mm thickness), with HF9 front axle and AC16 double-stage reduction rear axle (speed ratio 5.45), with a load capacity of more than 30 tons, suitable for mining and infrastructure transportation.
Suspension: Front and rear multi-leaf spring steel plate suspension (10/12 leaves), enhanced impact resistance.
Cargo Box and Hydraulic System
Cargo box size: optional 5.4m/5.8m/6.5m length, manganese steel material (bottom 10 side 8 or higher strength), bottom five longitudinal beams reinforced design, strong anti-deformation ability.
Hydraulic lifting: standard Haiwo front top hydraulic cylinder, stable lifting, support high-frequency loading and unloading.
Product Features
High Reliability Design:
The engine adopts a three-stage air filtration system (pre-filter + oil bath + air filter), which effectively copes with dust environment and prolongs service life.
Standard 200L cooling water tank and water spray device to prevent overheating of the brake system and improve safety.
Environmental Adaptability:
The engine is equipped with an intake electric heating device, which supports -30℃ low-temperature start-up and is suitable for cold areas.
The chassis is modularly designed, and the exhaust pipe layout and after-treatment system can be flexibly adjusted to adapt to different emission requirements.
Low Maintenance Cost:
The large pump engine has a simple structure, strong versatility of accessories, convenient maintenance, and does not need to rely on the electronic control system to reduce the failure rate.
Product Advantages
Price Competitiveness:
The price of the basic version is significantly lower than similar models of European and American brands, with outstanding cost performance.
Emission and Fuel Adaptability:
Supports National II/National III emissions, meets the environmental protection standards of emerging markets such as Southeast Asia and Africa, and is compatible with low-quality diesel.
Localized Service Network:
SINOTRUK has 160+ dealers and 330+ service outlets around the world, providing fast parts supply and technical support.
Strong Scene Adaptability:
Suitable for short-distance heavy-load transportation such as mines, ports, and infrastructure, and has outstanding performance in infrastructure projects in Africa, the Middle East and other regions.
Product Market
Africa: With high load-bearing capacity and durability, it occupies the mainstream market for mining dump trucks.
Southeast Asia: Adapts to high temperature and rainy environments and meets the needs of infrastructure projects.
